Can you wire a 3 phase motor wrong?

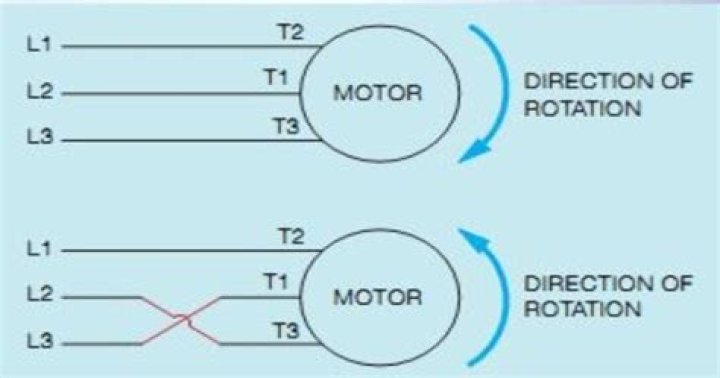

If a 3-phase motor rotates in the wrong direction, you can swap any two leads to change to the desired direction. One way to test motor direction is to take your best guess on how to connect the leads, then run the motor and note the direction it spins. If you’re wrong, you undo two leads and swap the wires.
How do you wire a 6 wire 3 phase motor?
- Remove all electrical power from circuit.
- Remove motor electrical connection box cover.
- Identify all power wires. The 240 VAC will have a black, red and blue wire for the power supply.
- Connect the wires in the following manner. Attach L1 to T1 and T6.
- Fold wires back inside motor electrical box. Replace cover.
What would cause a three-phase motor to run backwards?
At any rate, a three phase motor will only reverse if two of its three feeder conductors get swapped somewhere in the supply system. Usually (not very usual) a big reverse mechanical load can reverse the motor (load failure), this cause an overcurrent in the motor trying to run in the right direction.
What are the 4 wires in 3 phase?
In 3 phase 4 wire, the conduit is no longer used as a neutral or ground, and the supply has 3 ‘hots’, a neutral and a ground wire.
What does 3 phase wiring look like?
Three-phase power is like having three men of equal strength pushing that same car up the same hill. The three hot wires in a three-phase circuit are colored black, blue and red; a white wire is the neutral and a green wire is used for the ground.
Why does a motor have 12 wires?
They can simply be wired to accept higher or lower voltage, but the fact remains that for these motors, wye is always wye and delta is always delta. The electrician has access to both ends of all six coils, giving 12 total wire leads coming from the motor.
How do you wire a three phase motor?
A three-phase motor must be wired to a three-phase supply. Open the motor wiring box and identify the wires within. The nine wires should be labelled 1 through 9. Some motor leads are identified by colour; in this case consult the motor documentation for lead identification.
How many wires are in a 3 phase?
The Three-Phase System The three-phase system has four wires. Three are conductors and one is neutral. You can set up a three-phase system as a single-phase one, but you can’t do the reverse.
How to wire a 3 phase motor starter?
Inspect the three-phase motor’s wiring diagram. Identify the motor’s terminals.
What is a single phase 3 wire system?
A split-phase or single-phase three-wire system is a type of single-phase electric power distribution. It is the AC equivalent of the original Edison three-wire direct-current system.
