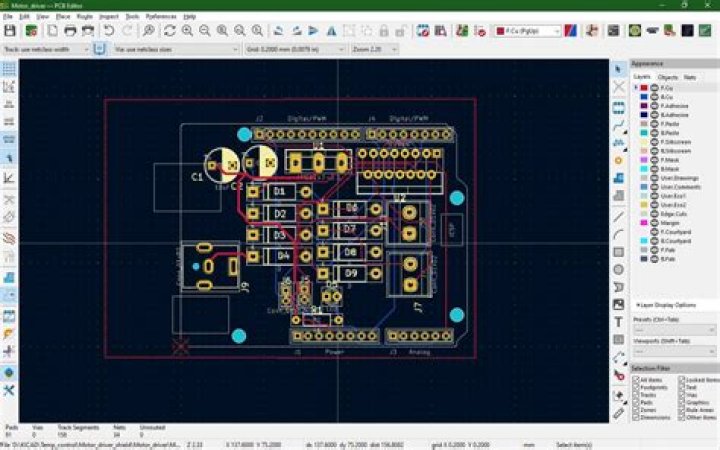

How do I change the width of a track in KiCad?
create custom track widths Click on the Track ↕ arrows and select Edit pre-defined sizes…. Once in the Board Setup click on the Track & via’s. Notice, in the area of the window, two empty grids. On the right side you can see the Custom Via Sizes grid, and on the right side is the Custom Track Widths.
How do I change the minimum track width in KiCad?
On the left tool menu of the PCB layout window, click on the ‘in’ button. This will change all the units to inches. Re-open the DRC window and you can now change the settings using imperial units….We generally use the KiCad defaults of:
- Clearance: By Netclass.
- Min Track Width: 0.2mm = 7.9mil.
- Min Via Size: 0.4mm = 15.7mil.
How do I change the width of a track in Easyeda?
Pressing the + or – Hotkeys when drawing the track will change the width of the track on the fly. Use the hotkey TAB to change the track width.
Does KiCAD have an autorouter?
It was a surprise to read that KiCad doesn’t have autorouting, and actually removed the feature between the 4. x and 5.0 versions. Holy smokes! Looks like some people use an external program called FreeRouting to accomplish automatic routing.
What is pad clearance KiCAD?
The pad clearance determines how near copper of a differing net can be. It is set in the pad or footprint properties. 0 clearance means the next level up will be used. On the board level this clearance is set per netclass.
What is the track width used for routing?
High density designs incorporating PCB footprints such as very fine pitch BGAs or high signal count parallel buses might require trace widths as thin as 2.5 mils and special kinds of vias such as laser-drilled micro-vias containing diameters of 6 mils or less.
How do I change layers in EasyEDA?
Via Top Menu> Tools > Layer Manager…, Or Click Layers Tool gear icon. Or right-click the canvas – Layer Manager menu. The Layer Manager dialog: The Layer Manager setting only works for the current editing PCB.
How do you change trace width in Eagle?
select the change tool, select width option, select width number. then go and click on your track segments. first click will select the segment, and 2nd click will change the width.
