How do I know what size U joint?
You measure from the outer side of the lock ring groove side to side. This gives you the width of the joint lock. You still need to measure the overall width of the joint to make sure it is compatible with the bolt-on yoke.
What is the difference between a 1310 and 1350 U joint?
Size and strength. The 1310 series joint is what you would expect to find stock in most Jeep or small trucks. A 1350 series joint/shaft is what you might find in many full size trucks. While it’s not 100% accurate, you could say that a 1310 is a “half ton” joint and a 1350 is a “one ton joint”.
What are the dimensions of a 1310 U joint?
Understanding U-Joints
| Series | Cross Width | Cap Diameter |
|---|---|---|
| 1310 | 3.219 (3 7/32”) | 1.062 (1 1/16”) |
| 1310BC* | 3.219 (3 7/32”) | 2 @1.062 (1 1/16”) 2 @ 1.125 (1 1/8”) |
| 1330 | 3.625 (3 5/8”) | 1.062 (1 1/16”) |
| 1330BC* | 3.625 (3 5/8”) | 2 @ 1.062 (1 1/16”) 2 @ 1.125 (1 1/8”) |
What is a Spicer U joint?
Super strong, super durable Spicer Extreme u-joints are meant for off-road use and slower speeds. Featuring an SAE-4340 nickel chromoly steel cross with an enlarged trunnion diameter for added strength, these u-joints are virtually indestructible.
What size is a 1410 u-joint?
Driveshaft and Driveline Parts > Universal Joints > U-Joints BY SIZE > 1410 Series U-Joint 4.188 X 4.188 – 1.188 outside snap ring > 1.188 X 1.188 Bearing Cap Diameter.
How much power can a 1310 U-joint handle?
According to Spicer, the 1310 joint is rated at 400 lb-ft of continuous torque (down the track) and 800 lb-ft of short-term torque (launch at the line). The 1330 has the same size caps as the 1310, but the U-joint cross is the same size as a 1350.
How much power can a 1310 U Joint handle?
What is 3r Ujoint?
This u-joint is a conversion u-joint. One side of the cross is standard 1310 series. The other side of the cross is the larger and wider 3R series….
| Accessories | Gear and Axle Parts | Straight Axle Swap Parts |
|---|---|---|
| Bargain Bin | Rod Ends/Heim Joint Components | Used Parts Categories |
What are the dimensions of a 1710 universal joint?
1710 series Universal Joints. 1710 series SPICER dimensions. E1 = 6.094 inches; E2 = 6.094 inches; D1 = 1.938; D2 = 1.938; 2 bearing caps WITH bearing plate; 2 bearing caps WITHOUT bearing plate . CLICK on the selections below for more details
How do I find the part number for my u-joint?

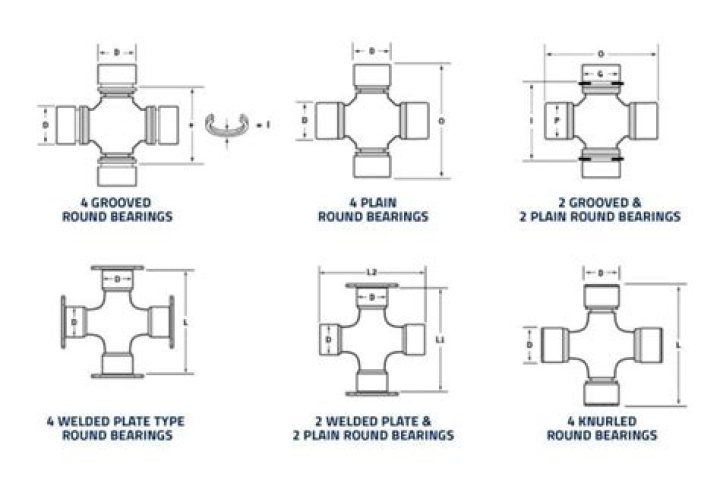

Search for your u-joint by dimension. Use the depictions of each style listed below to first determine the style of u-joint you desire. After you find the correct style, use the depiction of the selected style once again to find the measurements of your u-joint. Then use the tables found under each individual style to find the correct part number.
What is the Spicer yoke ruler used for?
NOTE: The Spicer Yoke Ruler is used to determine the series of driveshaft that is compatible with your yoke. Measurements for u-joint kits should be made with a caliper or micrometer and determined by using the dimensional charts in Spicer’s K350 catalog.
