How do you size a self drilling screw?

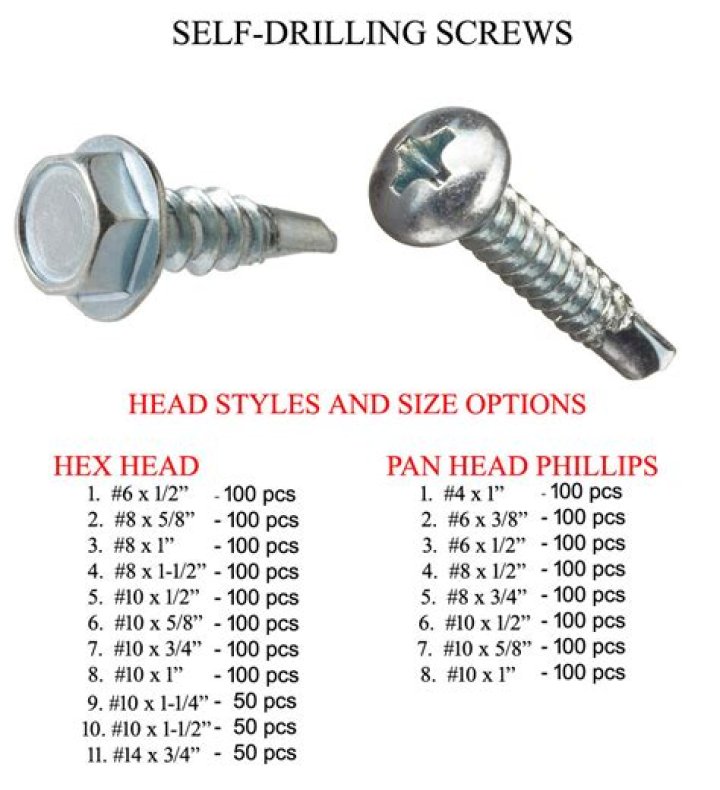

Common sizes (diameters) of self drilling screws, in whole numbers and fractional inches, range from #6 to #14 and 1/4″. Lengths span from about 3/8″ to 6″. When choosing a length, keep in mind that the drill point and threads must each be longer than the total thickness of the material being fastened.
Is standard for self drilling screw?
Most self-drilling screws are made of steel wire that meets the specification of ASTM A510 minimum grade 1018 material as specified in ASTM C1513 standard. ASTM C1513 refers to SAE J78 for the dimensional and performance requirements of self-drilling screws.
What are self drilling screws used for?
Self drilling screws have a point that acts as a drill bit and sharp cutting threads that tap the hole during installation. Self drilling screws are a commonly used variety of screw for quick drilling into both metal and wood. A self drilling screw can typically be identified by its point and flute (notch) tip.
How much weight can a self drilling screw hold?
around 80 to 100 pounds
Typically, a self-tapping screw can sustain around 80 to 100 pounds of weight.
What is the diameter of a #14 self drilling screw?
0.246
Thread Geometry- Self Tapping Screws – Inch
| Screw | Threads Per Inch | Major Diameter |
|---|---|---|
| max | ||
| No. 10 | 16 | 0.189 |
| No. 12 | 14 | 0.215 |
| No. 14 | 14 | 0.246 |
What sizes do self tapping screws come in?
Sizes of 4-40 to 3/8-16 are common. Self drilling screws, also called Teks®, have a tip that resembles a drill, and often have spaced threads, like sheet metal screws. In a single time-saving operation, these screws drill, tap and fasten.
What is self-drilling?
Self-Drilling – a screw that can, well, self-drill through various gauges of metal materials without predrilling. Both – perfect for securing two materials—steel to steel or steel to timber—for when a better hold compared, to nuts and bolts, is required.
Can self-drilling screws be used in wood?
Self-tapping screws are ideal for drilling into metal and other hard materials, but are not useful for soft materials — such as wood — that require the screw to force a path into the material for increased holding strength. Self-tapping screws are more dependable for installing into stone or brick.
How much weight can a 1.5 inch screw hold?
In general, a screw can hold 80-100 pounds. Several factors can impact on the amount of weight the screw can hold. This includes the length of the screw, the type of thread, the quality of the screw, the way it was inserted, and the type of forces that will be acting on it.
How much weight can a 6 32 screw hold?
Sizes up to 1/4″, torque in inch-pounds
| Size and pitch | Nominal diameter, in | Clamp load, lbs |
|---|---|---|
| Size # 6 | ||
| # 6-32 | 0.1380 | 374 |
| # 6-32 | 0.1380 | 579 |
| # 6-32 | 0.1380 | 817 |
What size is #15 screw?
| Wood Screw Dimensions, Sizes, Head Diameters & Threads per Inch | ||
|---|---|---|
| Nominal Screw Size | Threads per Inch | Average Head Diameter |
| 7 | 16 | 9/32 |
| 8 | 15 | 19/64 |
| 9 | 14 | 21/64 |
What size head is on a #14 screw?
Screw Dimensions
| “A” Flat Head | “B” Body Dia | |
|---|---|---|
| Size | Max | Min |
| 14 | 0.507 | 0.190 |
| Note: IFI Standards specify a tolerance on screw length of +0″, −1/16″. | ||
| “A” Flat Head | “B” Body Dia |
