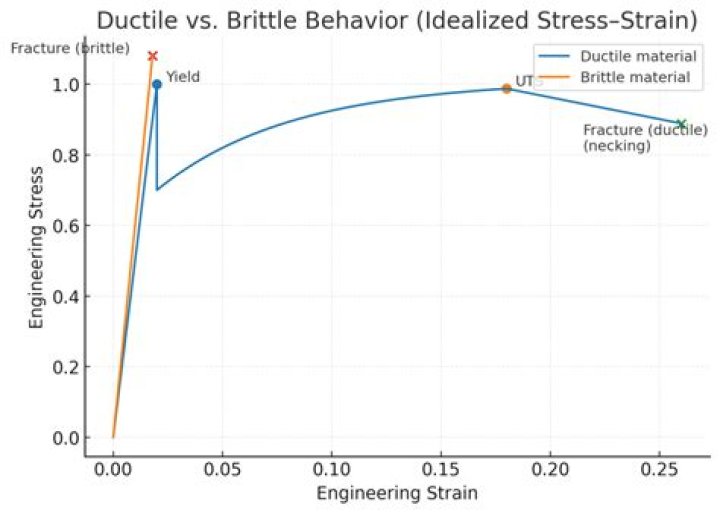

How the stress strain curves of brittle and ductile materials differ?
Materials can be named as ductile materials or brittle materials based on their response to an applied stress on them. The main difference between ductile and brittle materials is that ductile materials are able to be drawn out into thin wires whereas brittle materials are hard but liable to break easily.
What is stress strain curve of brittle material?
A typical stress–strain curve for a brittle material will be linear. For some materials, such as concrete, tensile strength is negligible compared to the compressive strength and it is assumed zero for many engineering applications.
What is ductility in stress strain curve?
Ductility is an indication of how much plastic strain a material can withstand before it breaks. A ductile material can withstand large strains even after it has begun to yield. Common measures of ductility include percent elongation and reduction in area, as discussed in this section.
What is ductile and brittle failure?
Brittle fracture means fracture of material without plastic deformation or with very small plastic deformation before fracture. Rock, concrete, glass, and cast iron all have such property, so they are called brittle materials. Ductile fracture means fracture of material with large plastic deformation before fracture.
What is brittle and ductile?
In other words if materials ductile, materials stretch under tensile load. The ductile materials are Steel, Aluminum, copper etc. Brittle materials break without significant plastic deformation under tensile stress. Also called sudden failure. Failure of material (b) shows, it’s a ductile material.
What does ductile fracture look like?
The classic example of a ductile fracture is a tensile specimen that has “necked down,” or deformed to form a “wasp waist” prior to fracture. A typical fracture of this type is the socalled cup-and-cone fracture characteristic of ductile metals pulled in tension.
What is the formula for ductility?
The increase in the gage length of the material, being subjected to tensile forces, divided by the original gage length. The elongation is often expressed as a percentage of the original gage length.
How do you test for ductility?
A bend test helps provide a visual indication of the ductility of the material. The guided bend test method requires the specimen to be loaded at its center point with a mandrel or plunger while being supported at the ends. The specimen is bent to a predetermined angle or until the specimen fractures.
