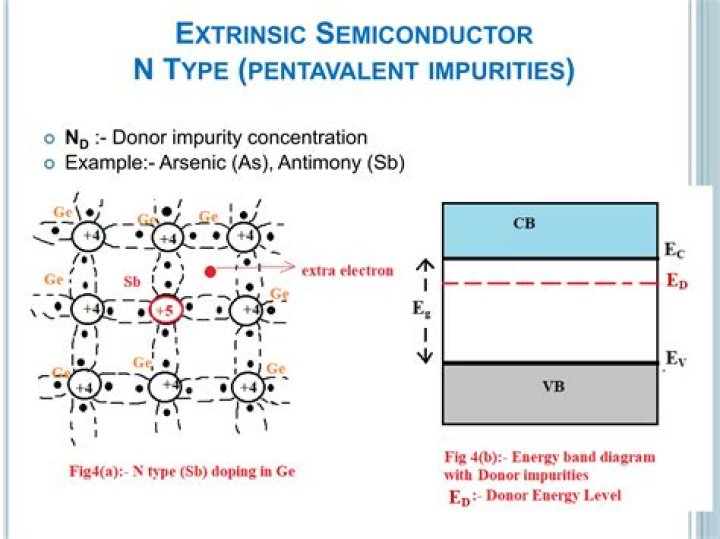

What are the examples of pentavalent impurities?
The examples of pentavalent impurities are Phosphorus (P), Arsenic (As), Antimony (Sb). The pentavalent impurity is added in a very minute fraction in the N-type semiconductor such that the crystal structure of the original intrinsic semiconductor is not disturbed.
What are trivalent and pentavalent impurities give at least 2 2 examples of each?
Pentavalent impurities are arsenic phosphorus and trivalent impurities are aluminium and gallium.
What are the examples of donor impurities?
The group V elements that often serve as donor impurities include arsenic (As), phosphorus (P), bismuth (Bi), and antimony (Sb). These elements have five electrons in their outermost electron shell (there are five valence electrons).
What is N and p-type?
In n-type doping, arsenic or phosphorus is added in small quantities to the silicon. In p-type doping, boron or gallium is used as the dopant. These elements each have three electrons in their outer orbitals. When they are mixed into the silicon lattice, they form ‘holes’ in the valence band of silicon atoms.
Is indium pentavalent or trivalent?
Pentavalent atoms: Atoms with valency 5; such as Arsenic (As), Phosphorous (Pi), Antimony (Sb), etc. Trivalent atoms: Atoms with valency 3; such as Indium (In), Aluminium (Al), Boron (B), etc.
What is pentavalent material?
Pentavalent materials are those materials that have 5 electrons in their valence shell. Group 15 elements are pentavalent materials.
What are trivalent and pentavalent impurity?
Pentavalent impurities Impurity atoms with 5 valence electrons produce n-type semiconductors by contributing extra electrons. Trivalent impurities Impurity atoms with 3 valence electrons produce p-type semiconductors by producing a “hole” or electron deficiency.
What are pentavalent dopants?
A dopant with five valence electrons is also called a pentavalent impurity. When substituting a Si atom in the crystal lattice, four of the valence electrons of phosphorus form covalent bonds with the neighbouring Si atoms but the fifth one remains weakly bonded.
What is pentavalent impurity?
Pentavalent impurities are the atoms with five valence electrons used for the doping of semiconductors. i.e. Arsenic (As), Phosphorous (Pi), Antimony (Sb), etc. Arsenic is an example for pentavalent impurity. They have 5 valence electrons.
Is silicon a pentavalent?
Crystals of Silicon and Germanium are doped using two types of dopants: Pentavalent (valency 5); like Arsenic (As), Antimony (Sb), Phosphorous (P), etc.
What are pentavalent elements?
Pentavalent elements are those elements which have five electrons in their outer shell. Since electrons are negative charge carriers, the resultant material is called an n-type (or negative type) semiconductor. The pentavalent impurity that is added is called a ‘dopant’ and the process of addition is called ‘doping’.
Is Gallium a pentavalent?
Some examples here: Pentavalent, antimony, arsenic, phosphorus, and trivalent, boron, aluminum, and gallium.
