What is active & passive earth pressure?
Active pressure is the condition in which the earth exerts a force on a retaining system and the members tend to move toward the excavation. Passive pressure is a condition in which the retaining system exerts a force on the soil.
What is active earth pressure definition?
The minimum value of lateral earth pressure exerted by soil on a structure, occurring when the soil is allowed to yield sufficiently to cause its internal shearing resistance along a potential failure surface to be completely mobilized.
What is earth pressure in geotechnical engineering?
Lateral earth pressure is the pressure that soil exerts in the horizontal direction. Rankine extended earth pressure theory by deriving a solution for a complete soil mass in a state of failure, as compared with Coulomb’s solution which had considered a soil mass bounded by a single failure surface.
What is KA and KP in soil mechanics?
Ka = Active Earth Pressure 3. Kp = Passive Earth Pressure (Passive is more like a resistance) Earth Pressure At Rest At rest earth pressure occur when there is no wall rotation such as in a braced wall. (
What is active pressure coefficient?
Active earth pressure coefficient (Ka): It is the ratio of horizontal and vertical principal effective stresses when a retaining wall moves away (by a small amount) from the retained soil.

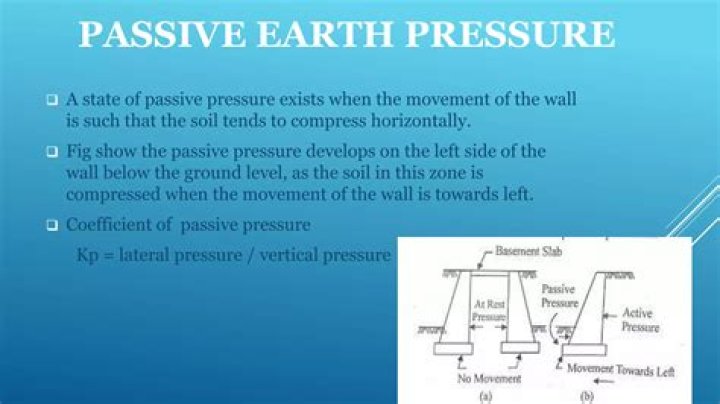

What is meant by passive earth pressure?
[′pas·iv ′ərth ‚presh·ər] (civil engineering) The maximum value of lateral earth pressure exerted by soil on a structure, occurring when the soil is compressed sufficiently to cause its internal shearing resistance along a potential failure surface to be completely mobilized.
What is passive earth pressure civil engineering?
Passive earth pressure is the earth pressure exerted when the wall moves towards the backfill. Coefficient of earth pressure is the ratio of vertical compressive stress and horizontal stress. It is different for active condition (Ka) and for passive condition(Kp).
What is passive earth?
What is passive Rankine state?
Consider a backfill mass of soil, which is supported through a frictionless wall surface AB. This wall will extend till an infinite depth beneath the soil layer. The wall will reach the state, when the stress condition will lead the soil element to failure. …
How do you calculate passive pressure?
How do you calculate the passive pressure? The passive resistance is the area of the passive pressure diagram, which is a triangle. If the distance from the top of the front soil to the bottom of the shear key is H, then the pressure at the base is Kp*γ*H, where γ is the soil density.
