What is material S235?

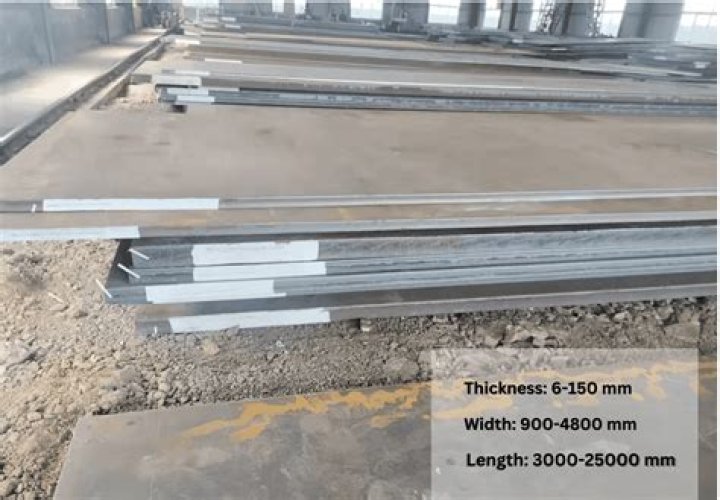

S235 – Structural Steel / Steel Plate This material is commonly supplied in the untreated or normalised condition and is available in several variations (denoted by additional letters and/or digits), which offer slight modifications of chemical composition and mechanical properties.
What is S 275?
The S-275 reporting process is an electronic personnel reporting process which provides a record of certificated and classified employees of the school districts and educational service districts of the state of Washington.
What is the difference between S355J2 and S355J2 N?
S355J2+AR–A structural grade (S) with the same minimum yield strength of 355 N/mm²m, but supplied in an ‘as rolled condition’. S355J2+N–A structural grade (S) with the same minimum yield strength of 355 N/mm²m, but supplied in an ‘Normalized condition’.
What is Q235B steel?
Q235 is a plain carbon structural steel that is used throughout China. It is also known as Q235A, Q235B, Q235C, and Q235D. Since it is mild steel, it is utilized in production without heat treatment. The Q designates the yield point, and the 235 indicates the yield strength.
What is the difference between S355 and S355JR?
“355” refers to the minumum yield strength value for the flat and long steel thickness ≤ 16mm. “JR” means the impact energy value is minumum 27 J at room temperature (20°C). “J0” can withstand the impact energy at least 27 J at 0°C.
What is S355J2 material?
S355J2 is a medium tensile, low carbon manganese steel which is readily weldable and possess good impact resistance (also in sub-zero temperatures). This material is commonly supplied in the untreated or normalized condition.
What is Jr in steel grade?
S355 structural grade (S) carries minimum yield strength of 355 N/mm²m, the JR designation confirms that the steel has undergone longitudinal Chary V-Notch impact testing at 27J (Joules) at room temperature. Other Charpy designations include J0, J2 and K2.
