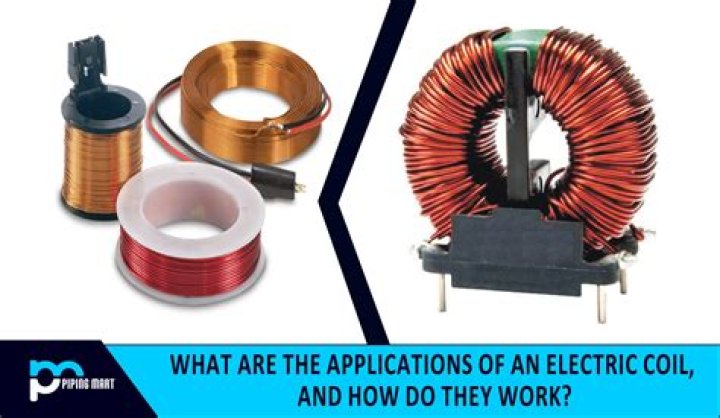

What is wound on a coil?
Electromagnetic wound coils, or brake coils, are electrical conductors that are used in applications where electrical currents intermingle with magnetic fields. Wound, or brake, coils are considered a magnetic component mainly designed to reduce line voltage without experiencing a major loss of power.
What is a form wound motor?
A form-wound stator winding is an alternative option to reduce those losses. A roughly designed model of form-wound winding is presented based on the original random-wound stator windings of HSIM.
What is the function of stator coils?
In an electric motor, the stator provides a magnetic field that drives the rotating armature; in a generator, the stator converts the rotating magnetic field to electric current. In fluid powered devices, the stator guides the flow of fluid to or from the rotating part of the system.
What are the two types of stator windings?
Based on the motor winding connection, armature windings are classified into two types which include the following.
- Lap winding.
- Wave Winding.
Why does a coil create a magnetic field?
Many electromagnetic coils have a magnetic core, a piece of ferromagnetic material like iron in the center to increase the magnetic field. The current through the coil magnetizes the iron, and the field of the magnetized material adds to the field produced by the wire.
What is an electrical coil?
coil, in an electric circuit, one or more turns, usually roughly circular or cylindrical, of current-carrying wire designed to produce a magnetic field or to provide electrical resistance or inductance; in the latter case, a coil is also called a choke coil (see also inductance).
What are the parts of a stator?
The stator core, stator winding and the outer frame are the three parts of the stator whereas the rotor core and field winding are the parts of the rotor. The three-phase supply is given to the winding of the stator.
What is stator made of?
The stator frame consists of laminations of silicon steel, usually with a thickness of about 0.5 millimetre. Lamination is necessary since a voltage is induced along the axial length of the steel as well as in the stator conductors.
How many types of stators are there?
Stator of Three Phase Induction Motor The stator of the three phase induction motor consists of three main parts: Stator frame. Stator core. Stator winding or field winding.
