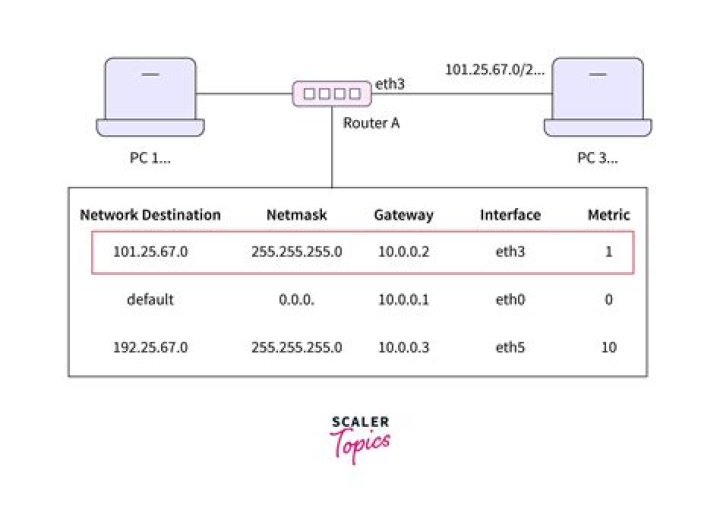

Which of the following codes will appear in the IP route table for routes redistributed into EIGRP?
Context-sensitive help was used in the above example to show each component of the metric being assigned to routes being redistributed into EIGRP. However, the final command was default-metric 1000000 1 255 1 1500.
How do I configure RIP routing?
Configuring RIP requires the following steps:
- Step 1 Enable the RIP routing process, which places you in router configuration mode via the Router#router rip command.
- Step 2 Specify those networks that should be advertised using RIP via the Router(config-router)#network [network-number] command.
What is route redistribution Why would it be used?
Route redistribution allows routes from one routing protocol to be advertised in another routing protocol. Route redistribution is common in environments that support legacy equipment, proprietary protocols, or that have merged with other networks using a different routing protocol.
How do I advertise a static route in RIP?
You want RIP to redistribute static routes that you have configured on your router. The biggest potential problem that you will encounter with redistributing routes into RIPv1 comes from breaking network class boundaries….Redistributing Static Routes into RIP.
| Type | Description |
|---|---|
| rip | Routing Information Protocol |
| static | Static routes |
How does BGP detect redistributed routes?
Verify BGP peering and route redistribution
- Log in using the previously defined credentials.
- Use the get logical-router command to get information about the Tier-0 and Tier-1 service routes and distributed routers. Figure 27 shows the logical routers and the corresponding VRF values for each.
Which two routing protocols can be redistributed into OSPF by a Cisco router?
It is a Link state routing protocol. IP EIGRP and RIPv2 can be redistributed into OSPF by a Cisco router.
What port does RIP use?
port 520
RIP uses User Datagram Protocol (UDP) port 520. RIP has the following architectural limitations: The longest network path cannot exceed 15 hops (assuming that each network, or hop, has a cost of 1).
How do I redistribute Eigrp to rip?
Analyze R3’s routing table and verify that the newly created loopback interfaces are being learned by R3. Configure R3 to redistribute EIGRP routes into RIP using a hop count of 3 then redistribute RIP routes into EIGRP using a T1 bandwidth and 20,000 microsecond delay.
